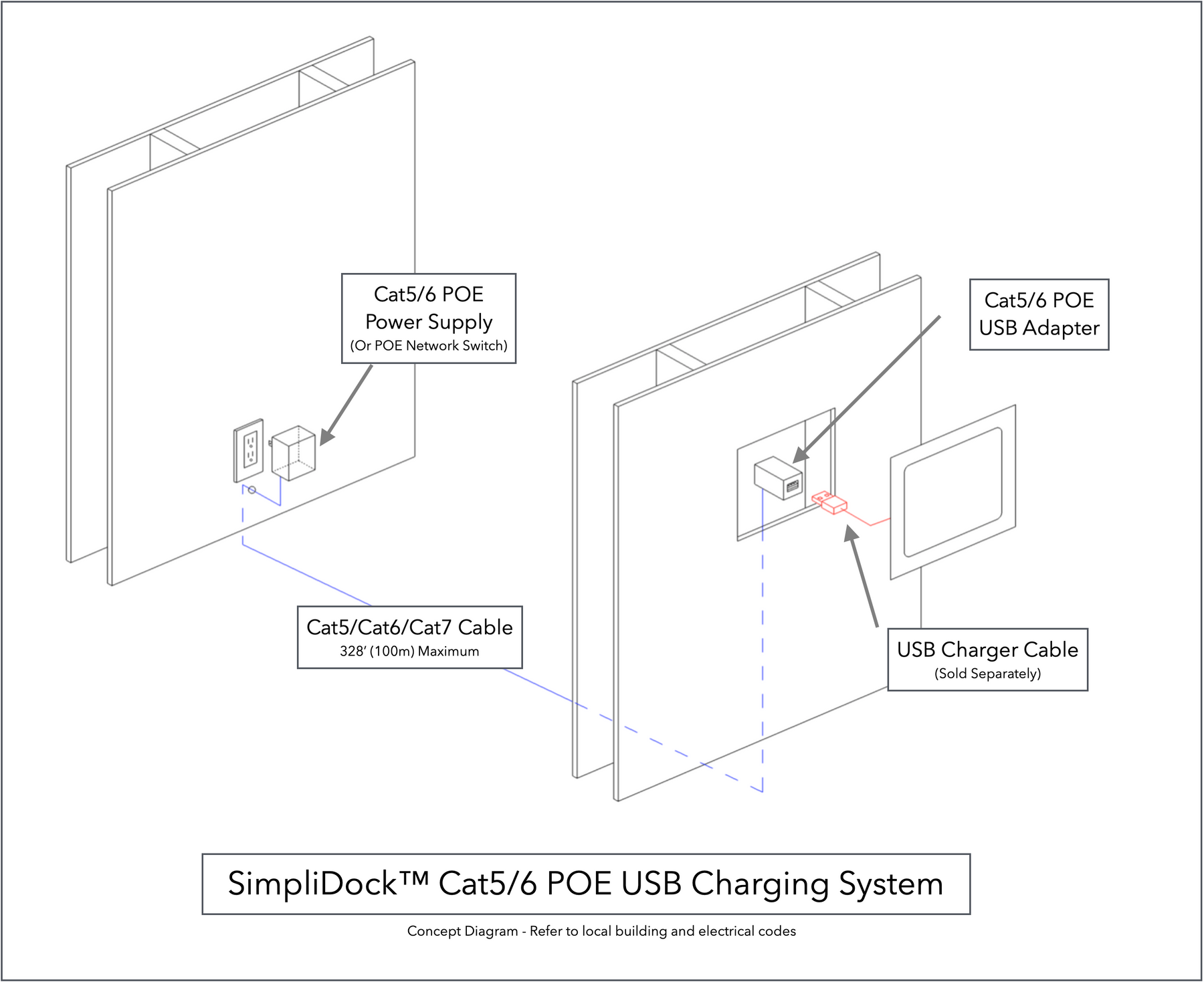

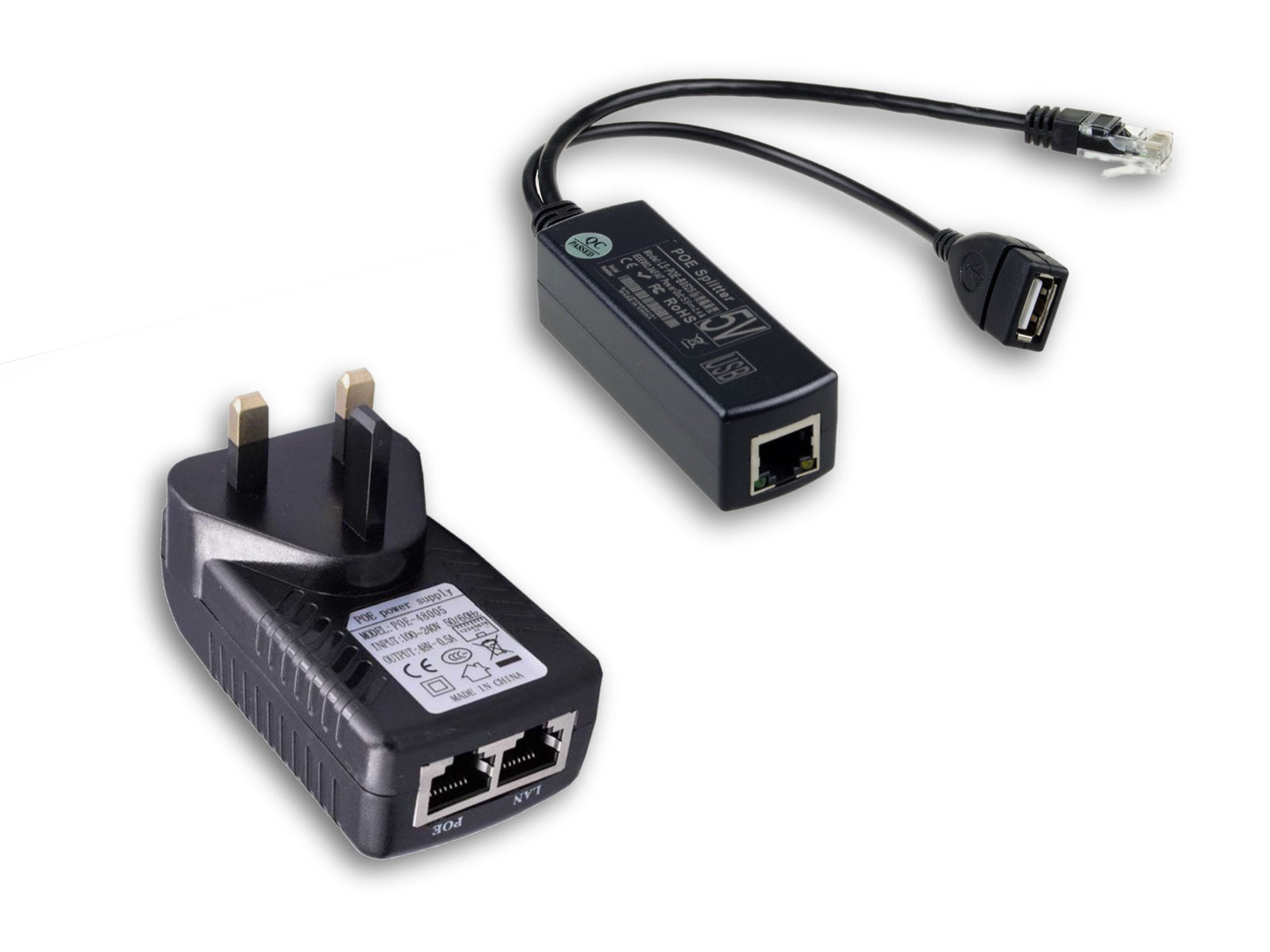

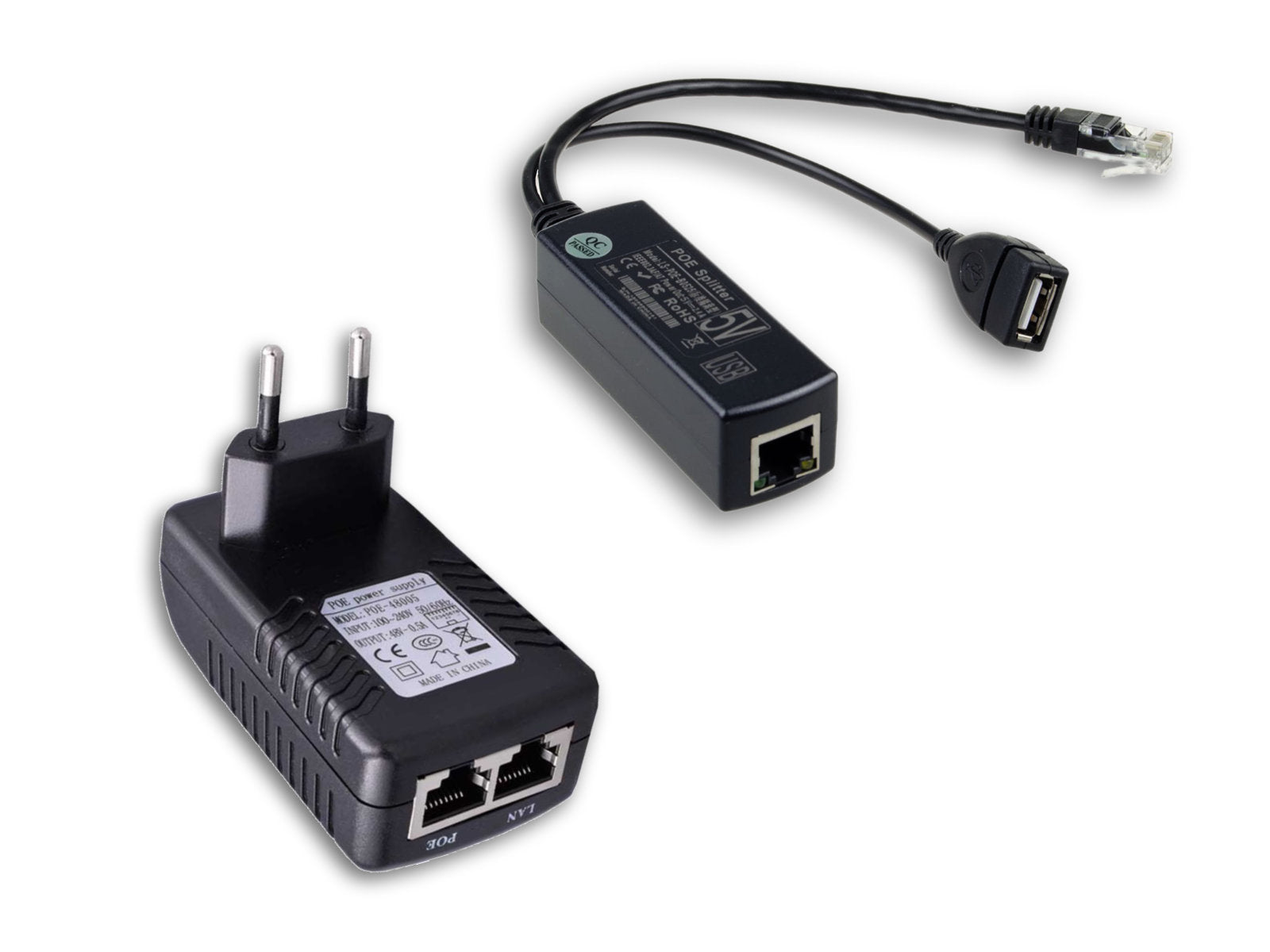

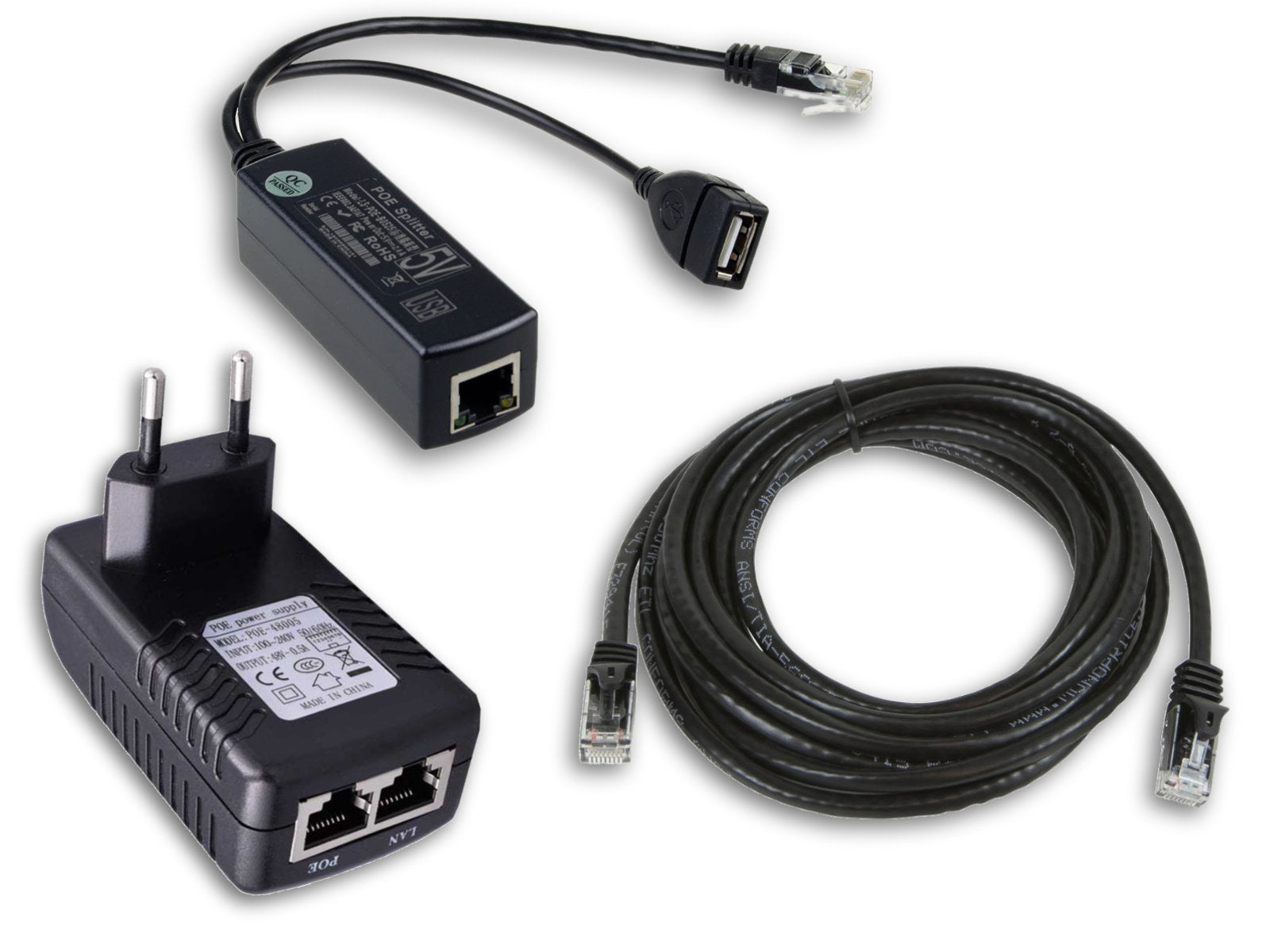

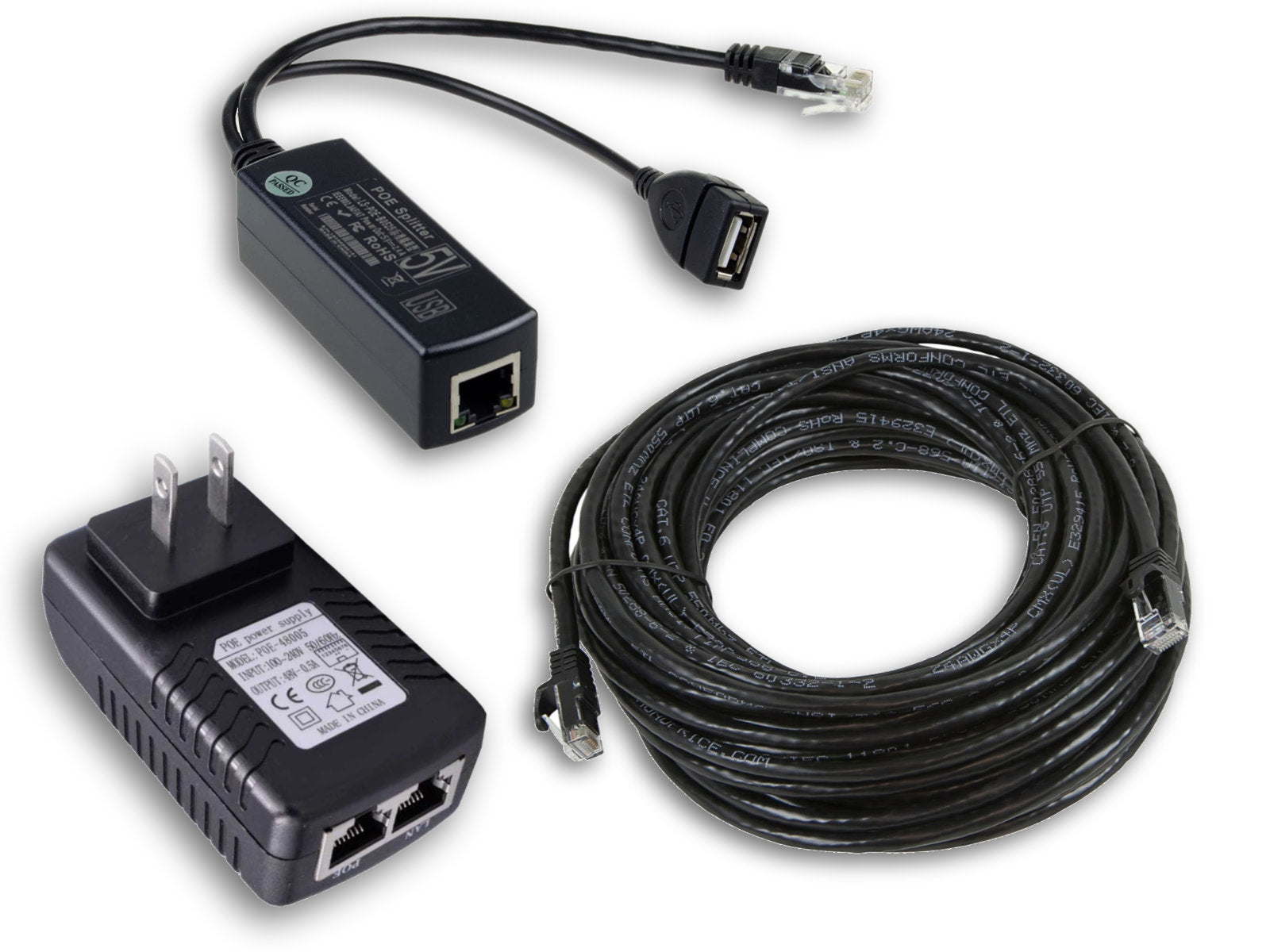

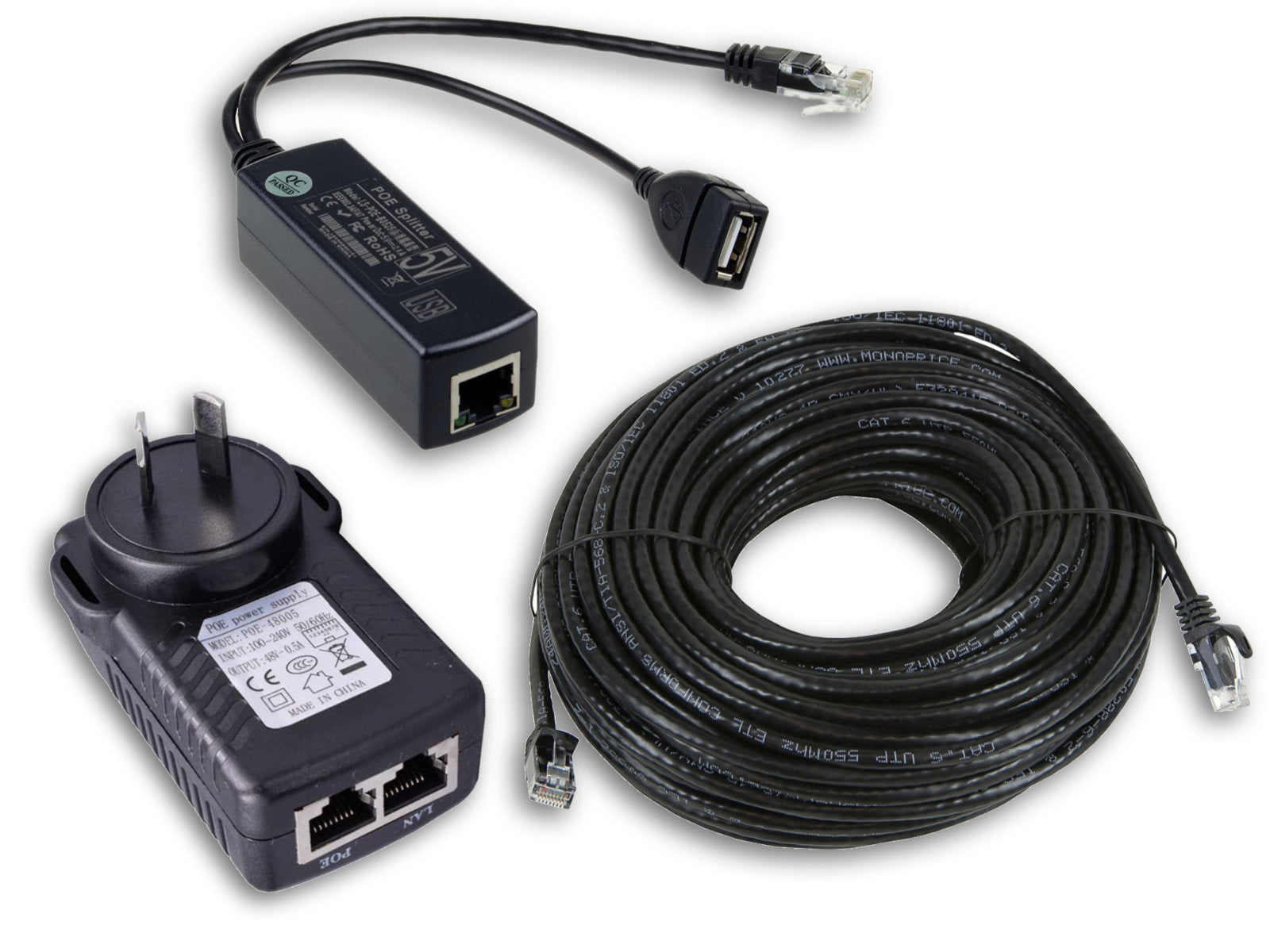

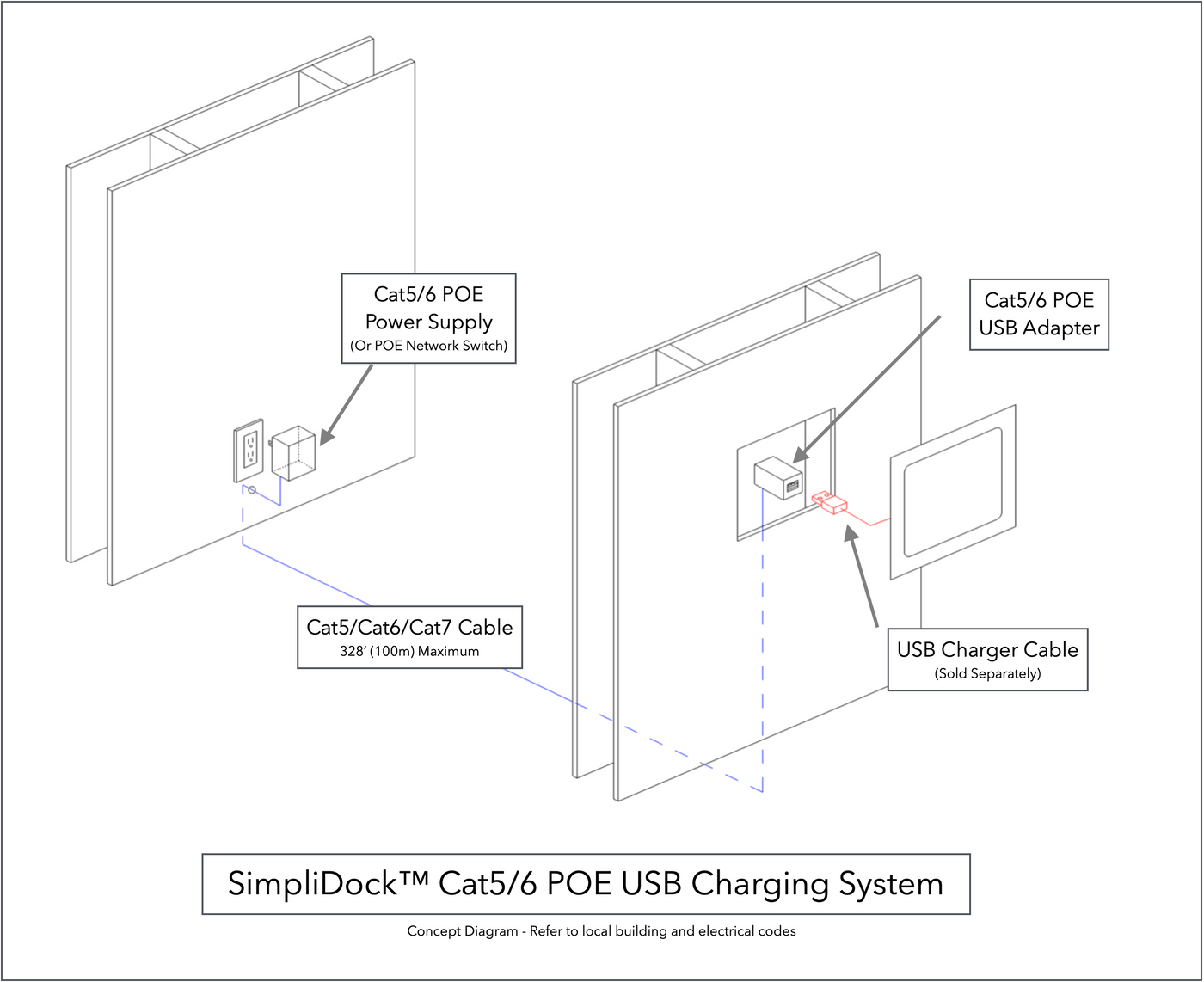

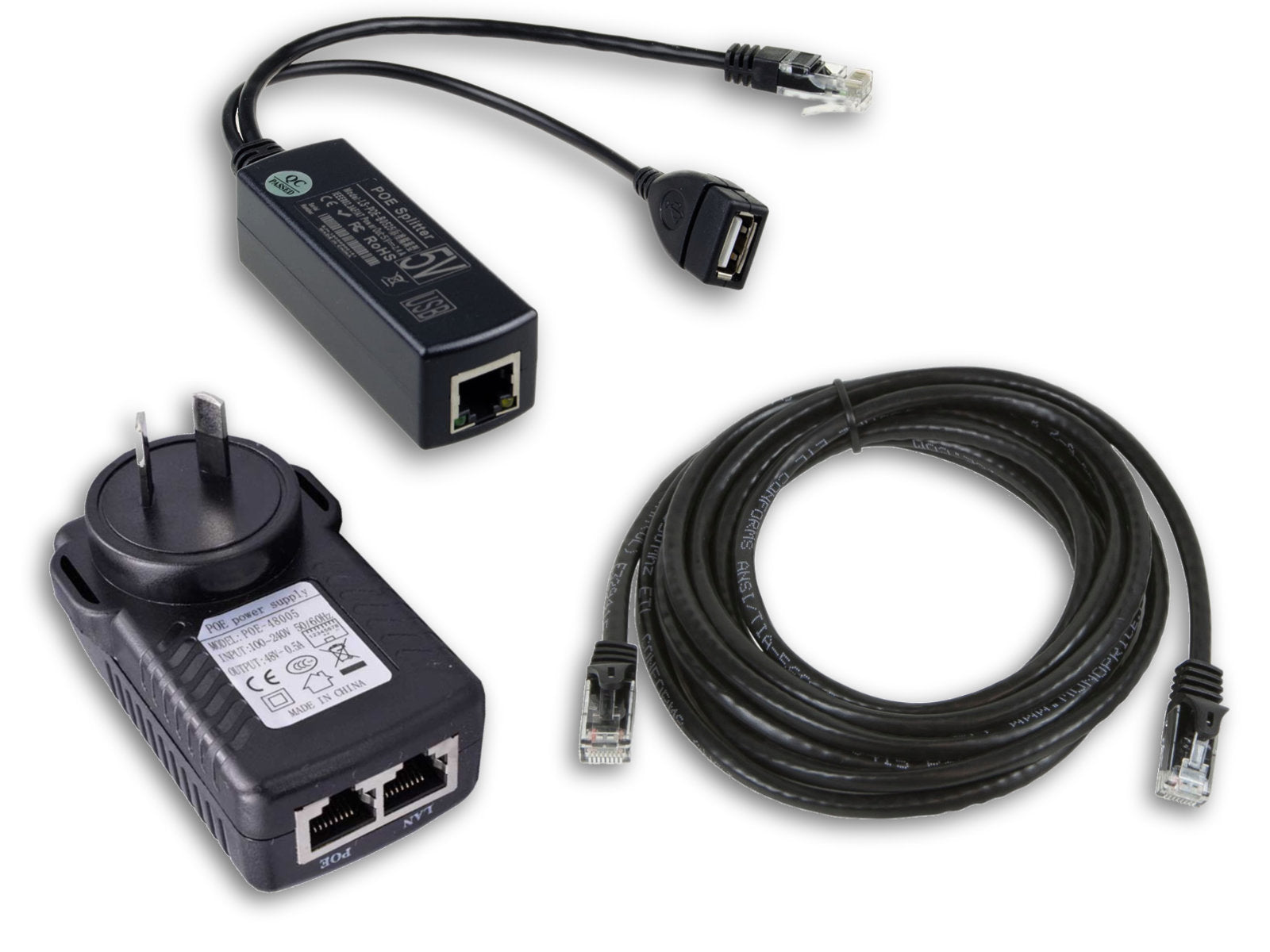

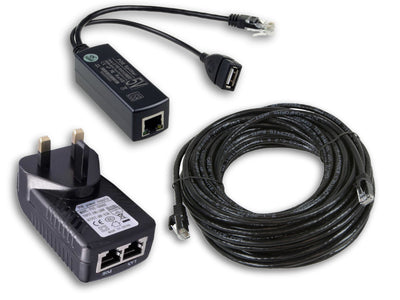

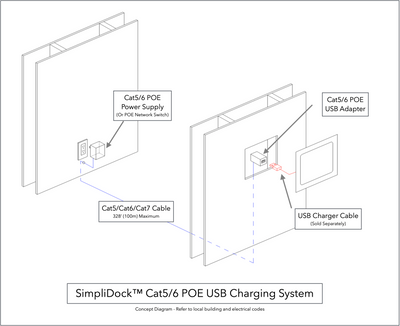

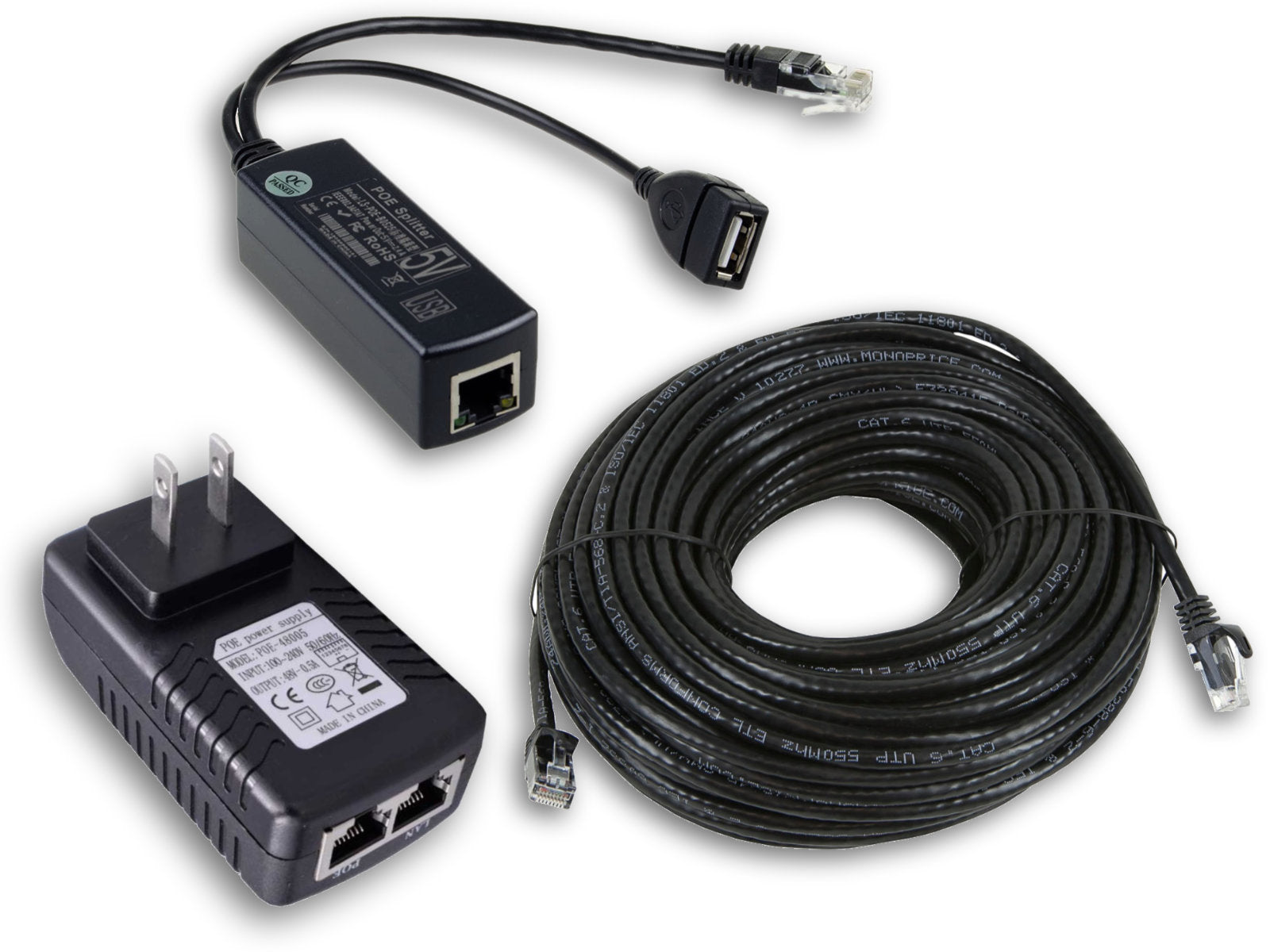

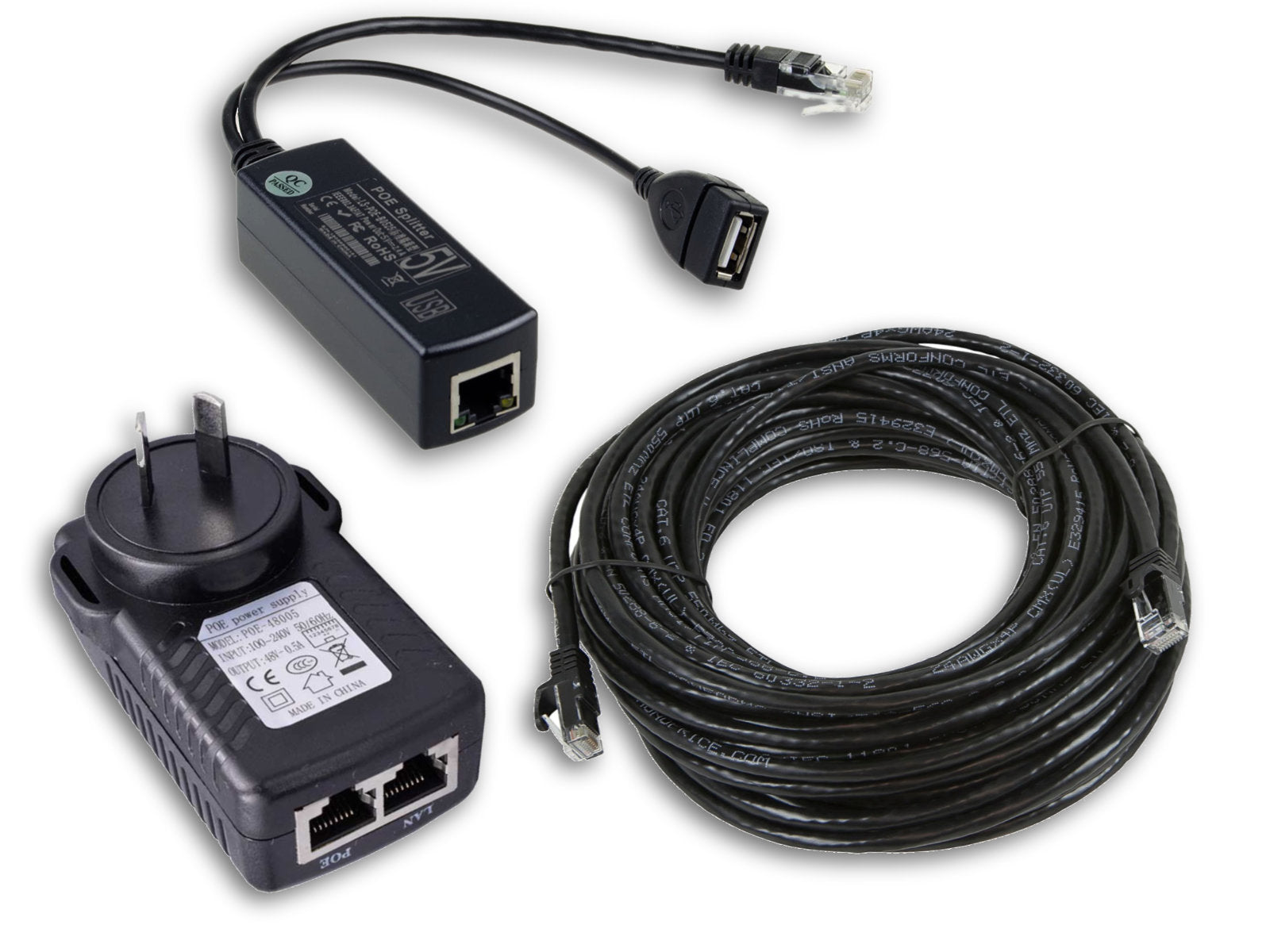

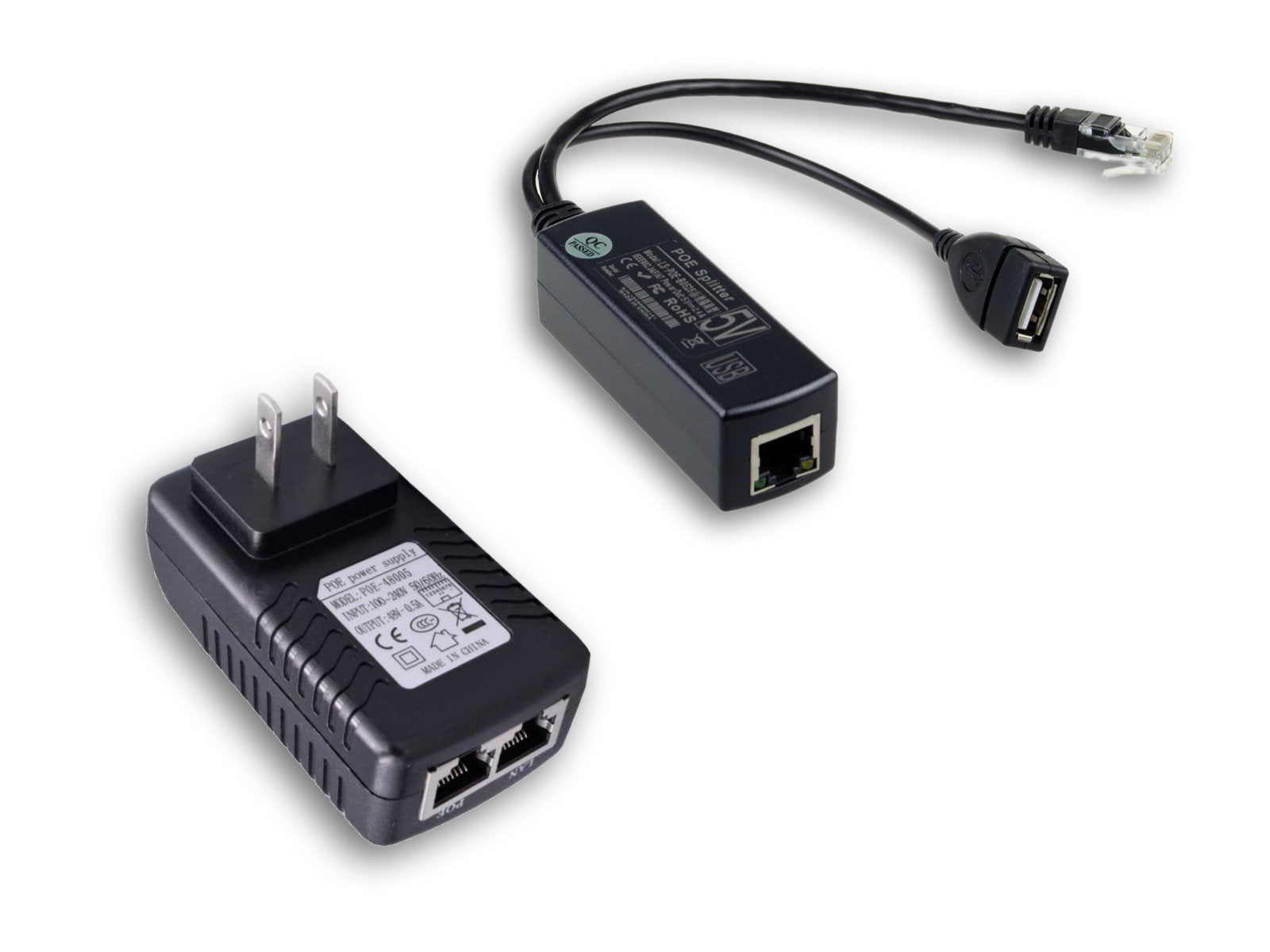

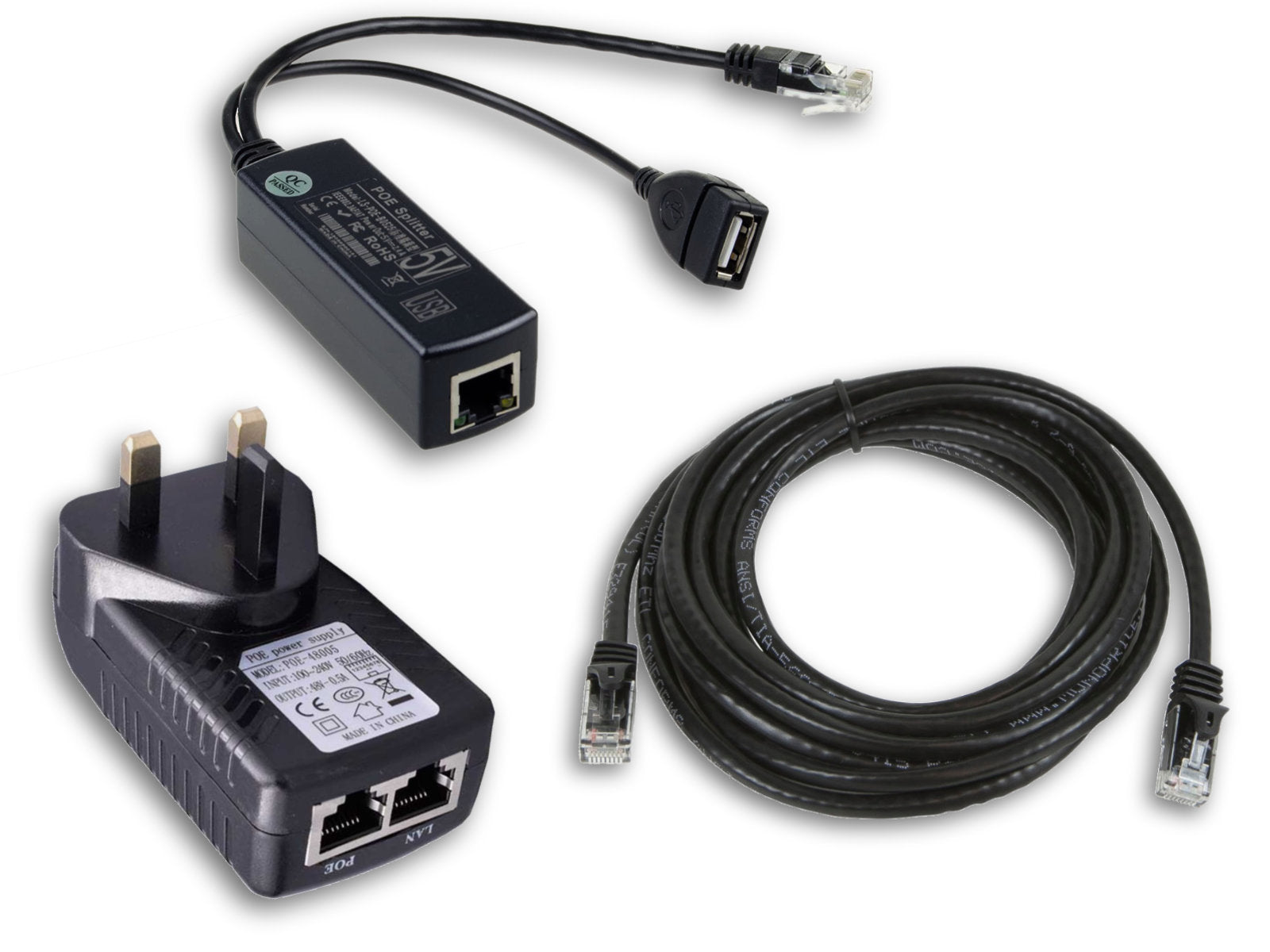

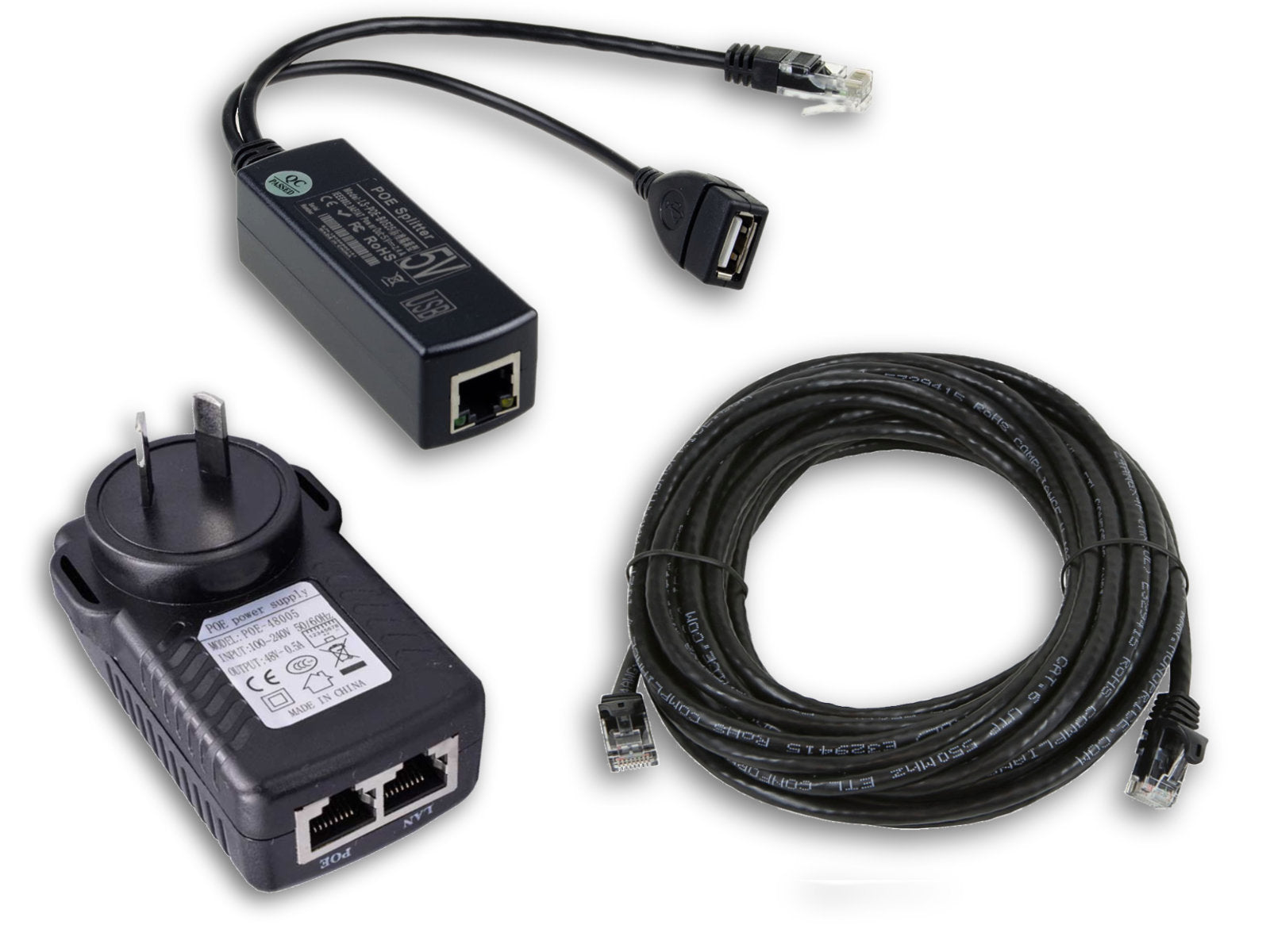

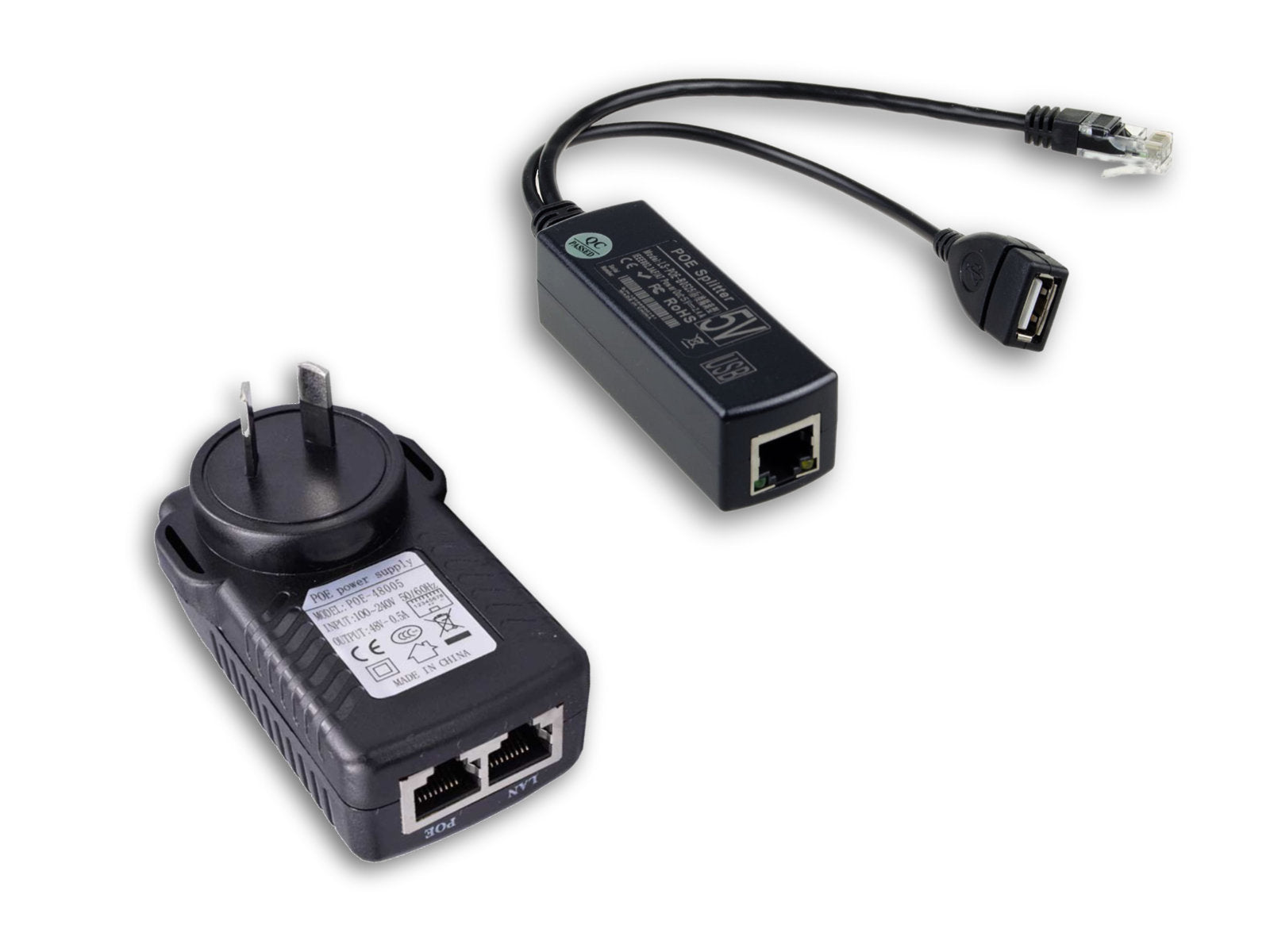

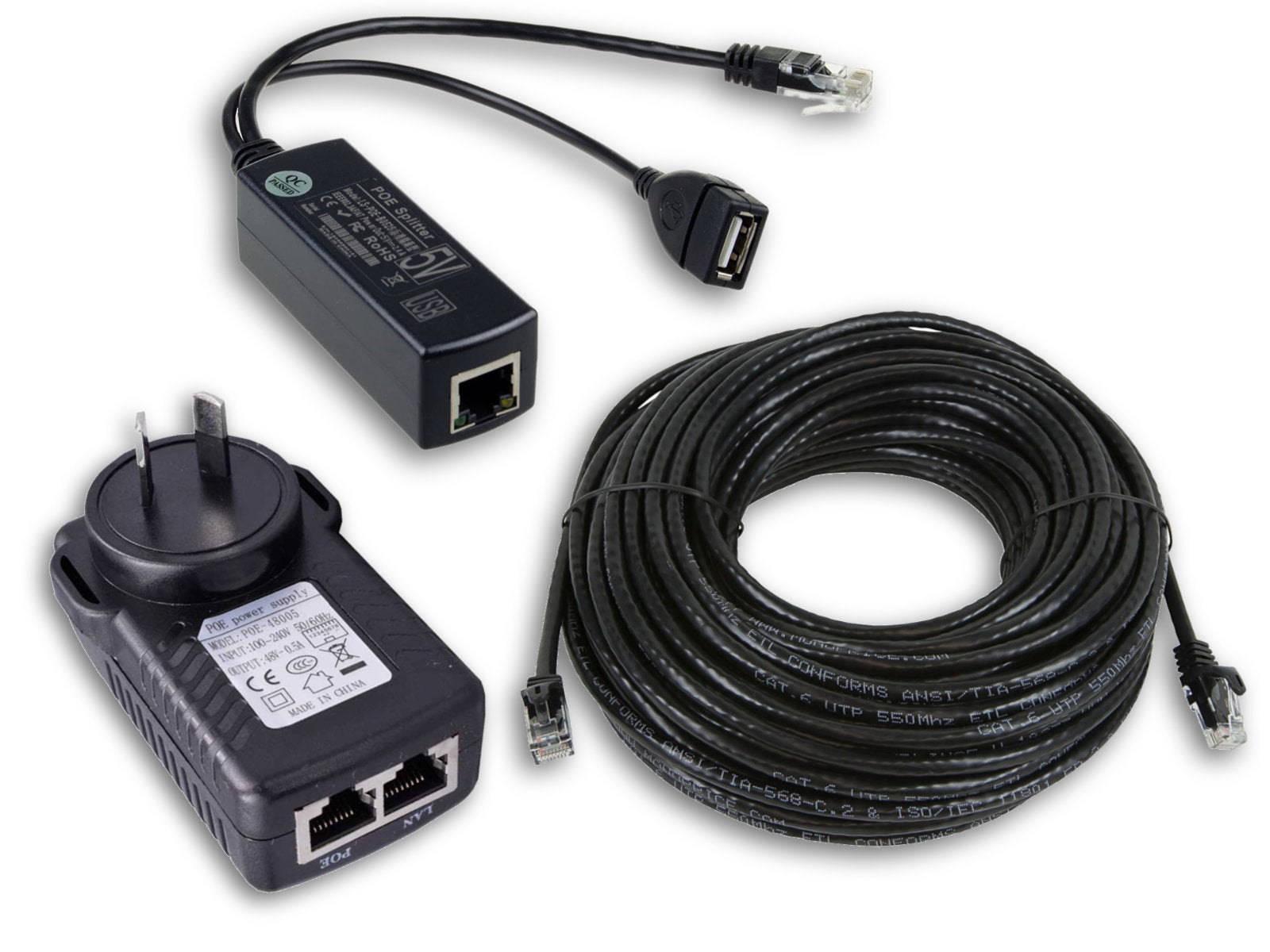

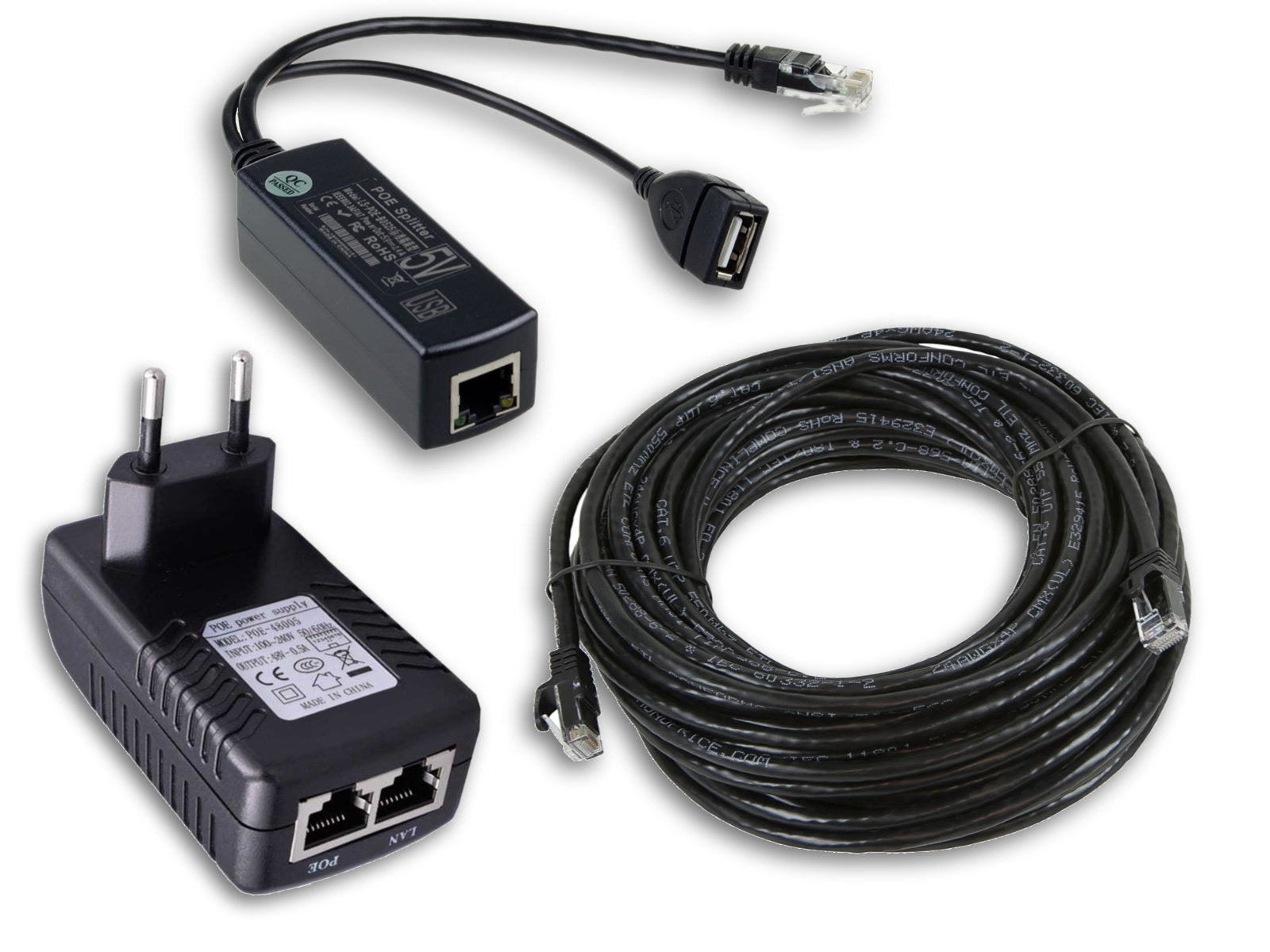

Power up your iPad® (or Android tablet) with our Cat5/6 POE USB Charger System. Provides fast charging up to 328 feet (100m) over standard Cat 5, Cat 6 or Cat 7 cabling. The perfect way to keep iPad® charged when docked in the SimpliDock™.
Note: USB output provides power only. If hardwired ethernet is required, please add Ethernet+USB to Lightning Adapter.
iPad® Lightning charging cable not included (sold separately).
Check your local building/electrical codes for installation suitability.
iPad® is a registered trademark of Apple, Inc. All rights reserved.
- Extend USB power up to 328' (100m) using standard Cat5 or Cat6 cables
- 2.4 Amp USB power allows full-speed charging for iPad, Android, Galaxy Tab, Amazon Fire Tablet, etc
- 1yr Limited Warranty
Compliant with IEEE802.3af
Power Input(RJ45 female): DC44~57V
Power Output(USB TYPE A Female): DC5.2V 2.4A

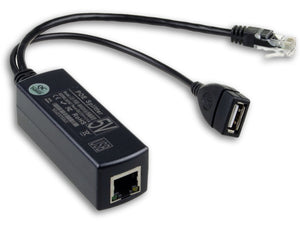

Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: USB TYPE A Female
Data Transfer Rate: 10/100Mbps
Devices will be detected before POE input
Power Pin:supports both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length: 165mm
RJ45 Modular Plug cable length: 155mm
Weight : 55g

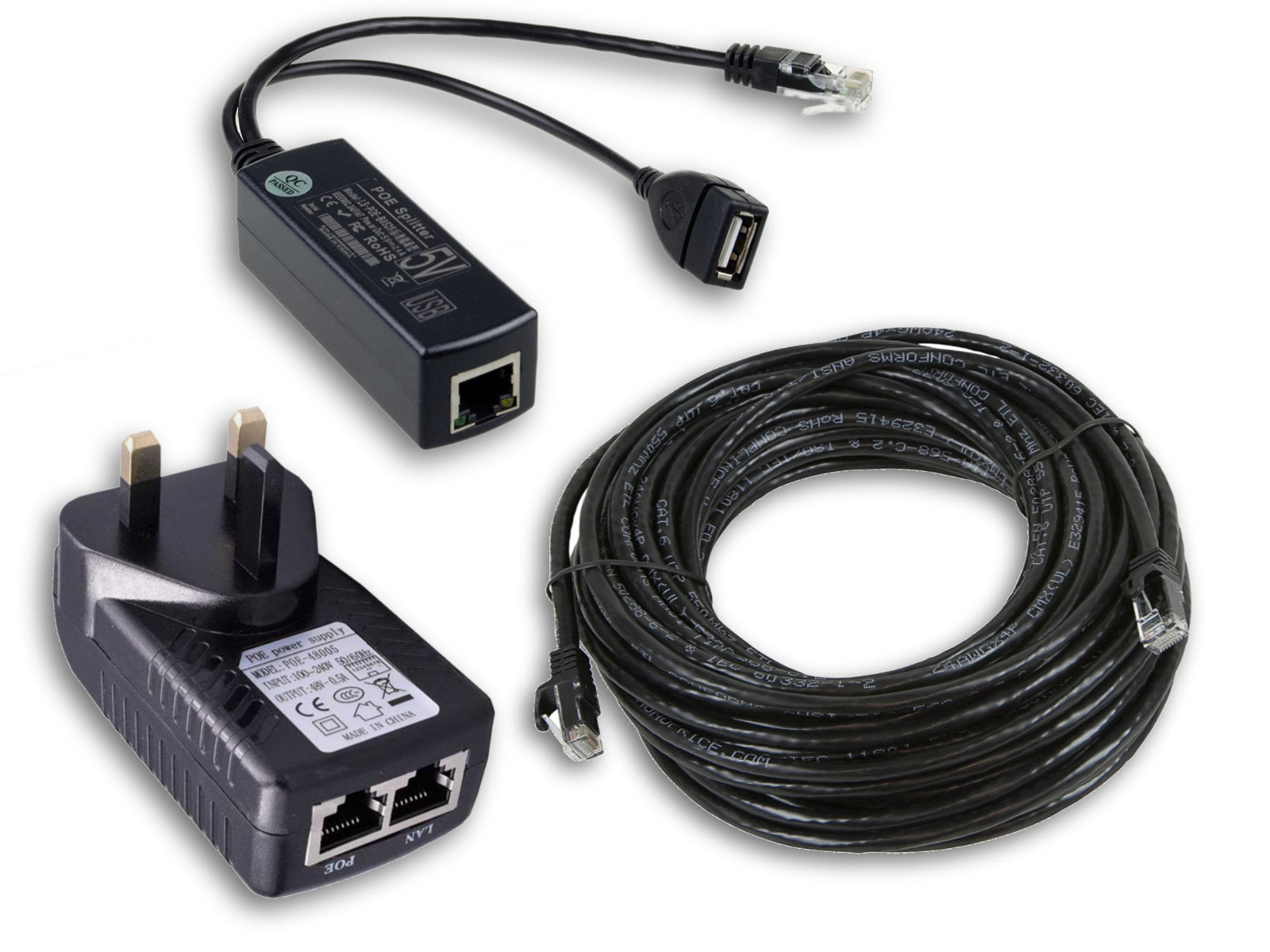

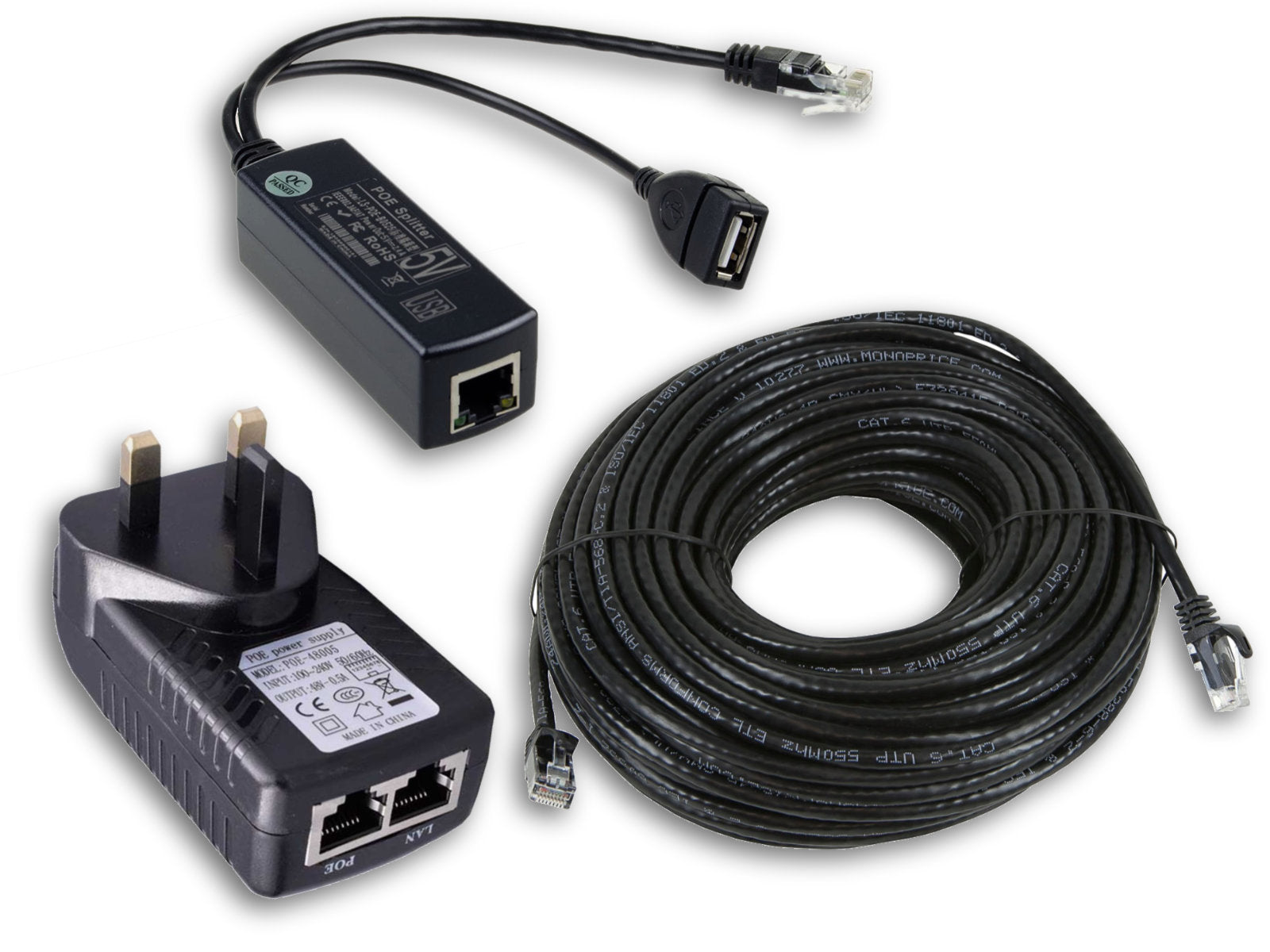

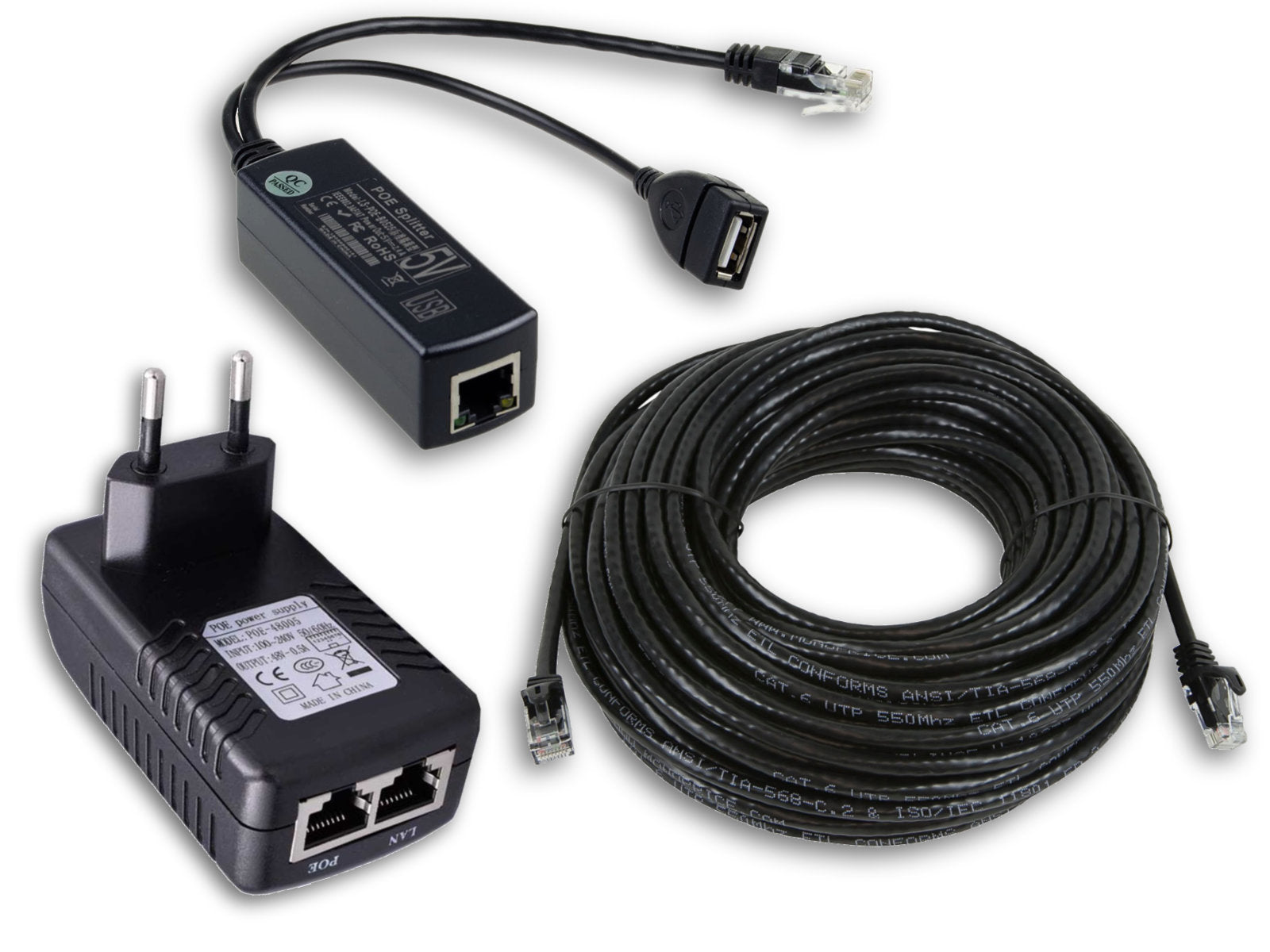

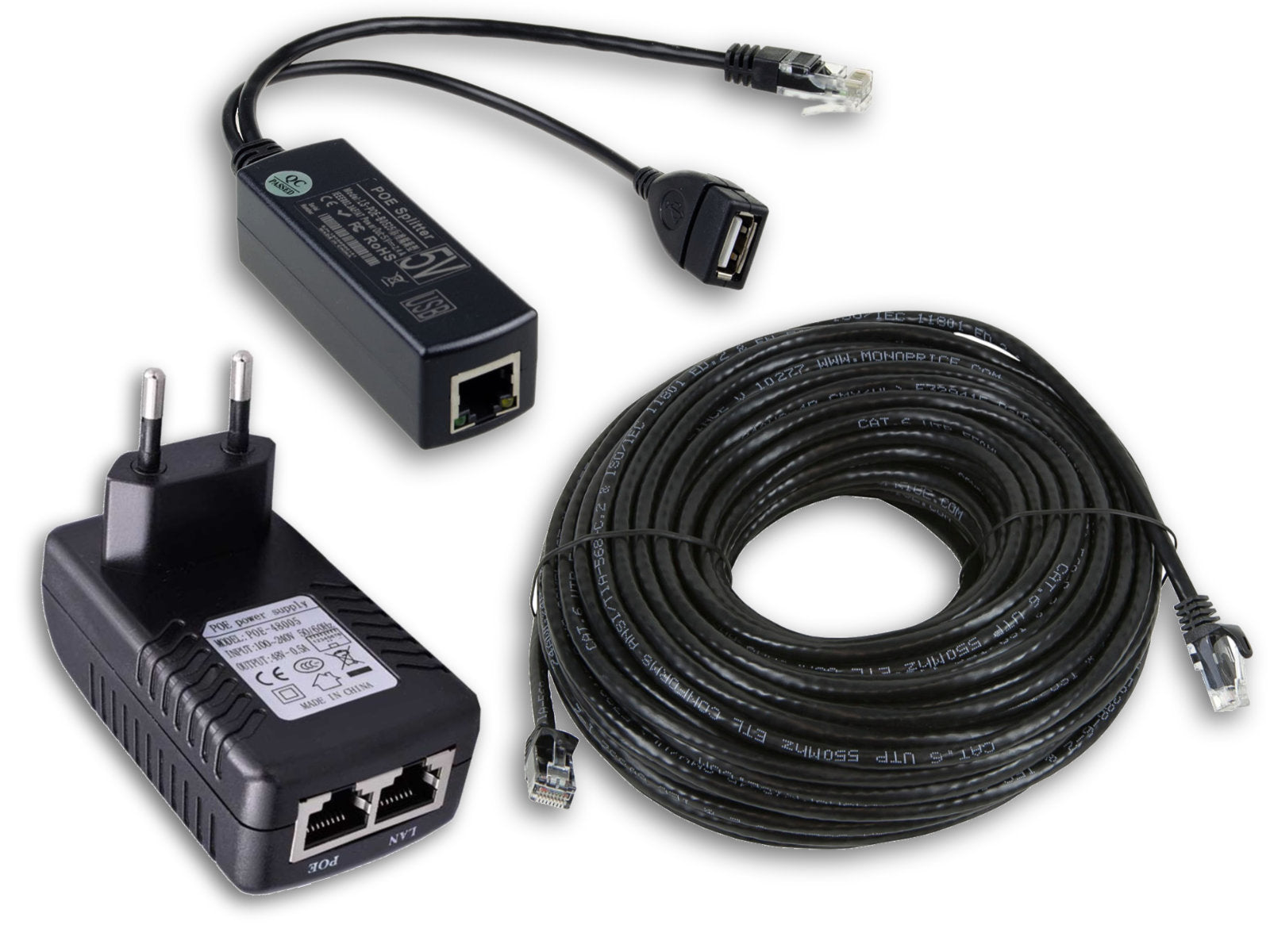

(1) SimpliDock™ Cat5e Patch Cable (10', 25', 50', 75' or 100')
