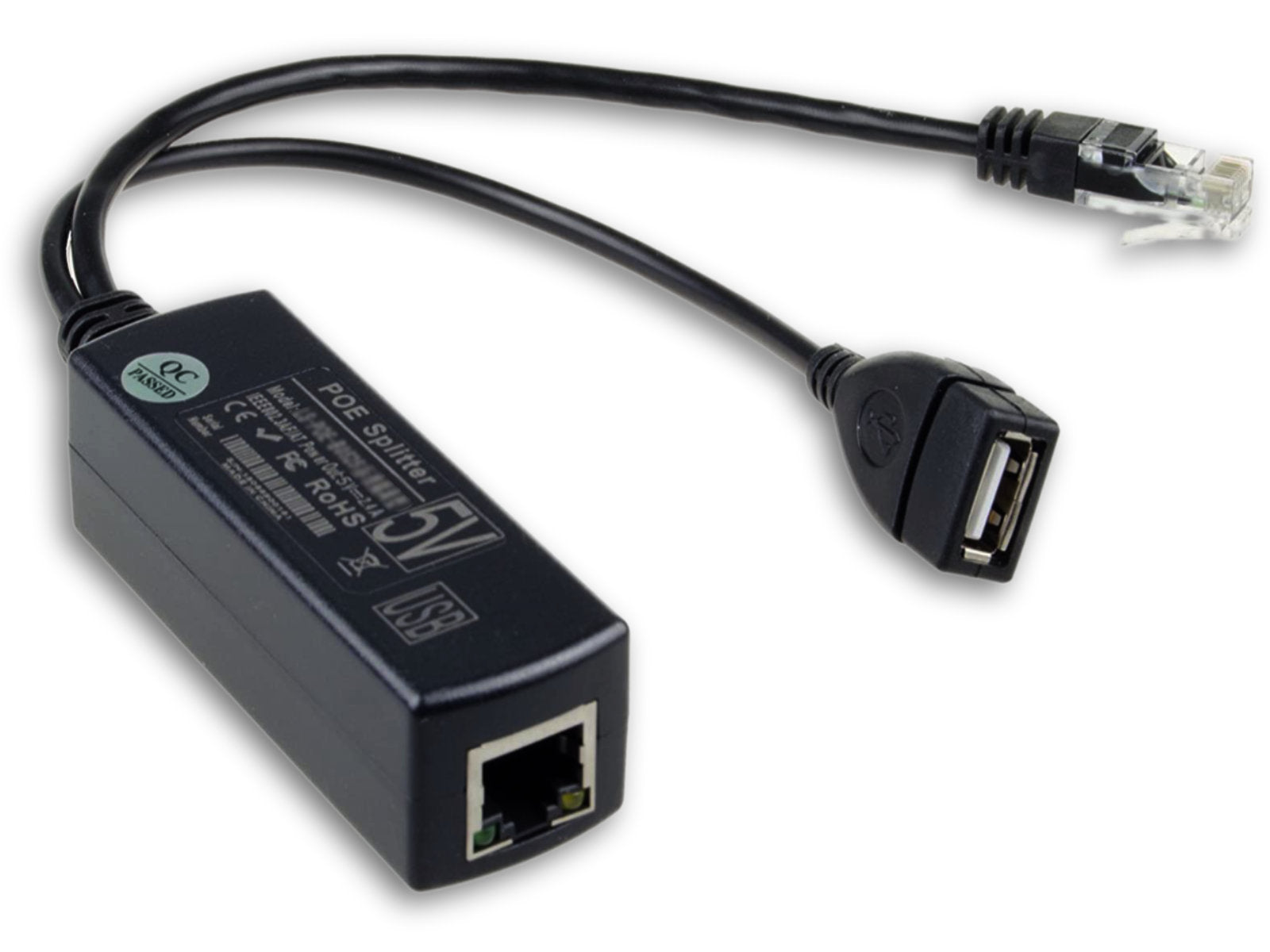

Cat5/6 POE USB Adapter
Cat5/6 POE USB Adapter

Cat5/6 POE USB Adapter

SD-USB-ADAPTER

Regular price $29.99
/
143 in stock

Power up your iPad® (or Android tablet) with our Cat5/6 POE USB Charger system.  Provides charging up to 328 feet over standard Cat5 or Cat6 cabling.  The perfect way to keep iPad charged when docked in the SimpliDock iPad wall mount/dock.

Note: USB output provides 5v 1amp power only.  This is typically enough current to gradually charge iPad while docked, but it is insufficient for larger, more power hungry iPad models or if screen is on for extended periods.

This provides USB power only.  If hardwired ethernet is required, please add Ethernet+USB to Lightning Adapter.

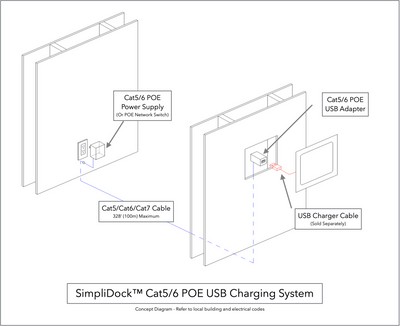

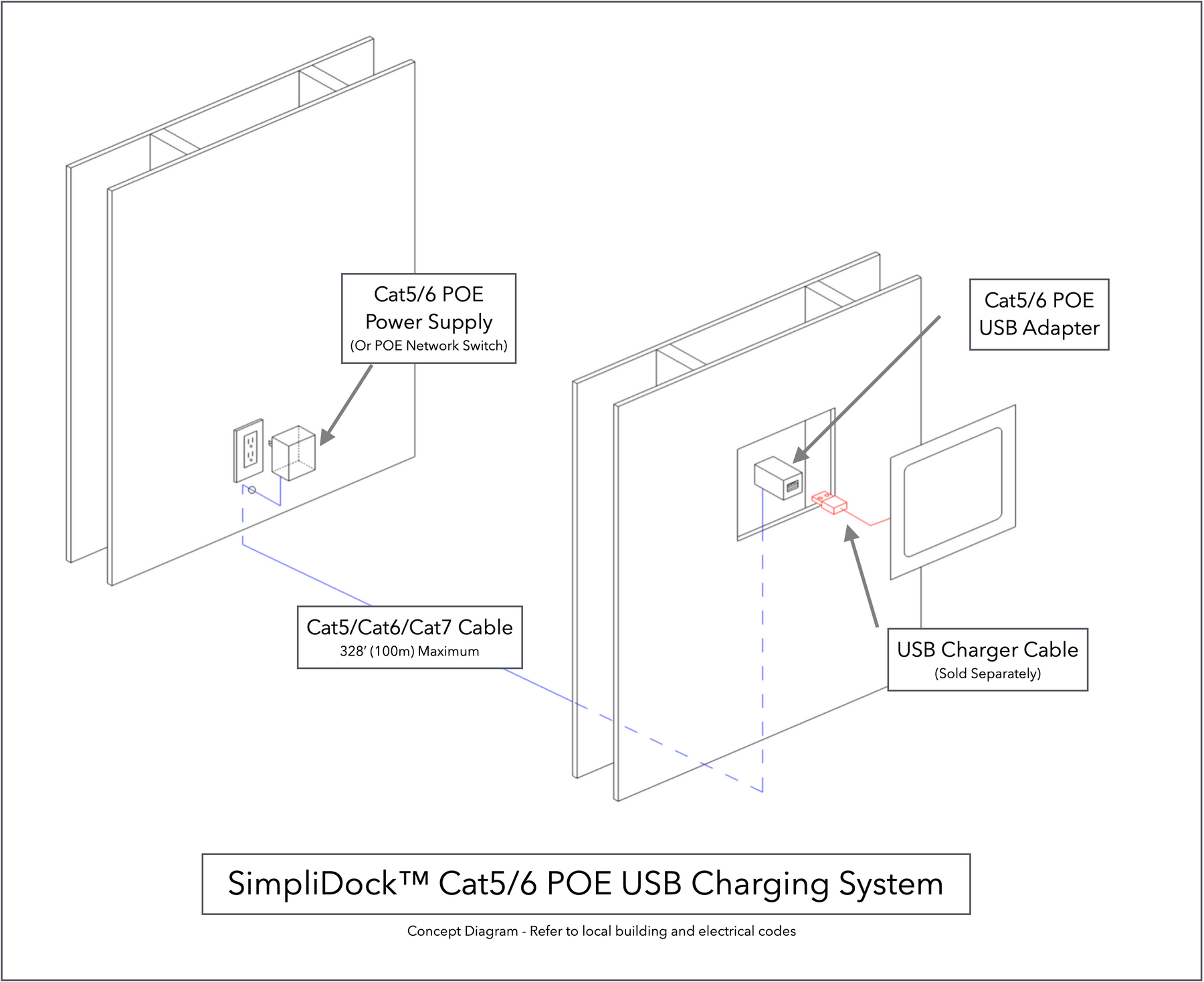

SimpliDock Cat5/6 POE USB Charging System Diagram

iPad® Lightning charging cable not included (sold separately).

Check your local building/electrical codes for installation suitability.

 iPad® is a registered trademark of Apple, Inc.  All rights reserved.

Features

- Extend USB power up to 328' using standard Cat5, Cat6 or Cat7 cables

- 5v 1 Amp USB power allows charging for iPad, Android, Galaxy Tab, Amazon Fire Tablet, etc

- Pair with SimpliDock™ Cat5/6 POE Power Supply and Cat5e Patch Cable.  Or purchase the complete SimpliDock™ Cat5/6 POE USB Charging Kit.

- For larger projects, pair with 3rd party POE network switch to power multiple Cat5/6 POE USB Adapters

- 1yr Limited Warranty

Specifications

Specification:
Compliant with IEEE802.3af
Isolation: 2.5kV
Power Input(RJ45 female): DC44~57V
Power Output(USB TYPE A Female): DC5.2V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: USB TYPE A Female
Data Transfer Rate: 10/100Mbps
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length: 165mm
RJ45 Modular Plug cable length: 155mm
Weight : 55g

Includes

(1) SimpliDock™ Cat5/6 POE USB Charger Adapter
